| Menşe yeri: | Guangdong, Çin |
| Marka adı: | changier |
| Sertifika: | ce, ISO |
| Fiyat: | $35,000.00 - $38,000.00/sets |
|---|---|
| Ambalaj bilgileri: | Ahşap paket |
| Yetenek temini: | Ayda 100 Takım / Takım |
| Uygulanabilir Endüstriler: | Çiftlikler, İnşaat işleri, Restoran, Enerji ve Madencilik, Oteller, balıkçılık endüstrisi, balıkçılı | Şart: | Yeni |
|---|---|---|---|
| buz şekli: | yaprak buz | Gerilim: | 3P |
| Güç: | 1200W | Boyut (U * G * Y): | 1680mm*1520mm*1450mm |
| Ağırlık: | 1200Kg | Garanti: | 1.5 yıl |
| Anahtar satış noktaları: | kullanımı kolay | Buz depolama kapasitesi: | buz kutusu boyutuna bağlıdır |
| Makine Test Raporu: | Sağlanan | Video çıkış denetimi: | Sağlanan |
| Pazarlama Türü: | Sıcak Ürün 2021 | Çekirdek bileşenlerin garantisi: | 1 yıl |
| Ana bileşenler: | PLC, Pompa, Motor, kompresör | kompresör markası: | Bitzer, Copeland |
| Başvuru: | Sanayi | Kontrol sistemi: | Siemens PLC program kontrolü |
| Malzeme: | SUS304 Paslanmaz Çelik | Soğutma Bileşenleri: | DANFOSS |
| Elektrik parçaları: | LG(LS) | Soğutucu: | R22 veya R404a |
| buz kalınlığı: | 1.8mm~2mm | Tip: | Sanayi |
| Satış sonrası servis: | Çevrimiçi Destek ve Video Teknik Destek | Garanti Sonrası Servis: | Saha bakım ve onarım hizmeti |
| Liman: | Şanghay |
Large-scale industrial flake ice machines are widely used in industrial production or self-built ice factories due to the advantages of high refrigeration efficiency and large ice output. In areas with sufficient water resources, it is recommended to choose a water cooling system or an evaporative cooling system. Since the cooling effect of the air cooling system is relatively poor, it is only suitable for use in areas where water resources are scarce.
Large industrial flake ice machines should be equipped with ice storage with cold source. The size of the ice storage room is recommended to be configured according to 1/2 of the daily output. In special cases, the customer decides by himself. Large industrial ice machines are generally used in conjunction with ice storage and ice delivery systems.
1. High ice-making efficiency;
2. The power is relatively large, and the power supply capacity needs to be determined;
3. Color man-machine interface, the operation of the unit is clear at a glance, the operation is simple, and the maintenance is convenient;
4. The unit can choose piston/screw compressor;
5. There is no standard ice storage room, but non-standard customization is possible;
1. Preservation of raw materials in food factories and pre-cooling of food;
2. Pre-cooling, preservation and transportation of live-killed livestock and poultry in meat processing plants;
3. Chemical plant reaction kettle, raw material cooling, machine cooling and environmental cooling;
4. Concrete pouring and cooling in the construction industry, concrete mixing and adding;
5. Ice factory;
6. Ocean fishing seafood preservation;
7. Mine cooling.

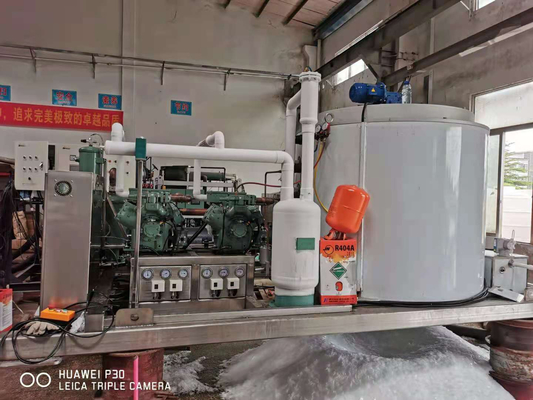

30tons ice making machine for fishery industry fish cooling and preservation industrial flake ice machine
Technical parameter:
| Model | KP05 | KP10 | KP20 | KP30 | KP50 | KP80 | KP100 | KP200 | |
| Capacity (Tons/24hrs) | 0.5 | 1 | 2 | 3 | 5 | 8 | 10 | 20 | |
| Refrigerant | R22/R404a/R507 | ||||||||
| Compressor Brand | Danfoss | Bitzer/ Refcomp | |||||||
| Cooling Way | Air Cooling | Air/ Water Cooling | Water | ||||||
| Compressor Power | 3 | 5 | 9 | 12 | 28 | 34 | 56 | 102 | |
| Ice Cutter Motor | 0.2 | 0.2 | 0.37 | 0.37 | 0.37 | 0.75 | 0.75 | 1.5 | |
| Power of Circulating Water Pump | 0.09 | 0.14 | 0.14 | 0.15 | 0.25 | 0.25 | 0.55 | 0.75 | |
| Power of Water Cooling Pump | / | / | / | / | 2.2 | 4 | 4 | 5.5 | |
| Cooling Fan Motor | 0.38 | 0.38 | 0.38 | 0.37 | 0.75 | 1.5 | 1.5 | / | |
| Ice Machine Size | L (mm) | 1280 | 1280 | 1600 | 1663 | 1680 | 2200 | 2200 | 4150 |
| W (mm) | 800 | 1250 | 1350 | 1420 | 1520 | 1980 | 1980 | 2157 | |
| H (mm) | 800 | 893 | 1090 | 14710 | 1450 | 1700 | 1700 | 2250 | |
* Power supply: 380V/50Hz(60Hz)/3P; 220V(230V)/50Hz/1P; 220V/60Hz/3P(1P); 415V/50Hz/3P;
440V/60Hz/3P.
* Standard conditions: water temperature: 21℃;ambient temperature: 25℃;condensing temperature: 40℃.
* Ice making capacity would be changed depending on installation place, refrigerator's freezing capability, or surrounding usage environment such as outside temperature.
* The above data is subjected to the final design without notice.
Part 1: High Quality Flake Ice
The flake ice is dry, pure, powder-less, not easy to block, thickness is about 1.8mm-2.0mm, without edges or corners which would avoid damage to products. So it is widely used in refreshing vegetable/fruit and freezing fish and meat.
Part 2: Features
1. Automatic monitoring system: Intelligentized mirco-computer control, don't need to arrange people to monitor the machine, saving you the labor cost.
2. Emergency Alarm: It will send out the emergency signals if there is any malfunction. Also the machine will start the program to project itself and display the cause on the screen.
3. Evaporator Drum: stainless steel SUS304 or carbon steel optional. Exquisite welding and hardening ensures high-efficient heat transfer and longer service life.
4. Integrated Design with ice bin: ice bin will be installed under the flake ice machine and flake ice will fall into the bin directly and stay frozen inside.
5. Salt Water dosing pump will be offered: making the flake ice dry, thick and not easy to melt.
Layout of flake ice machine with Ice storageHigh Qu, ality Evaporator Drum
Salt Water Dosing Pump
Part 3: Famous Brand Accessories
| Item | Name of Components | Brand Name | Original Country |
| 1 | Compressor | BITZER | Germany |
| 2 | Ice Maker Evaporator Grid | changier | China |
| 3 | Water cooled condenser | changier | China |
| 4 | Refrigeration components | DANFOSS/CASTAL | Demark/Italy |
| 5 | PLC Program control | SIEMENS | Germany |
| 6 | Electrical components | LG (LS) | South Korea |
changier main products include: direct cooling ice block machine, large edible ice cube machine, commercial ice maker, tube ice machine, plate ice machine, fresh water flake ice machine, sea water flake ice machine, automatic conveying system, cold room, ice crusher machine, low temperature water chiller, automatic packing system, and other series of ice making equipments.
